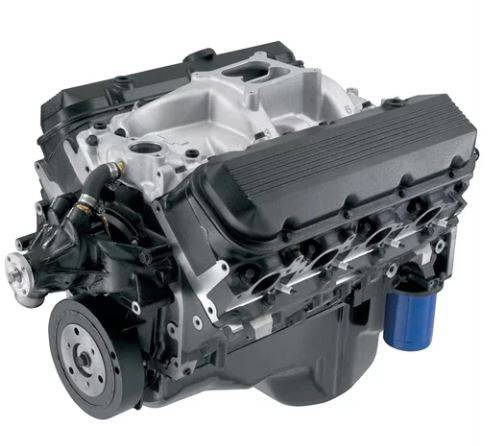

Chevrolet Performance 454HO - 438HP

Replaces 12568774

BIG TORQUE ON A BUDGET 454HO Video Chevrolet Performance's 454 HO crate engine is a Big-Block bargain - an affordable engine with performance specs that will make you think it's 1970 all over again, including 438 horsepower and 500 asphalt-wrinkling lb.-ft. of torque. A latest-generation block casting with four-bolt main caps is the Big-Block engine's foundation and features an all-forged rotating assembly for great strength and durability. It also uses a smooth hydraulic roller camshaft for excellent drivability and a broad performance range. Rectangular-port cylinder heads with large, 2.19/1.88-inch valves, round out the assembly. The engine package includes a water pump, balancer, 14-inch flexplate and an aluminum intake manifold. Simply add a carburetor, ignition system and starter and the engine will be ready to roar. All of the necessary parts are available from Chevrolet Performance. TECH SPECS Part Number: 19433409 Engine Type: Chevy Big-Block V-8 Displacement (cu in): 454 Bore x Stroke (in): 4.250 x 4.000 Block (P/N 19170538): Cast-iron with 4-bolt main caps Crankshaft (P/N 14096983): Forged steel Connecting Rods (P/N 19170198): Forged steel Pistons (P/N 10215228): Forged aluminum Camshaft Type (P/N 24502611): Hydraulic roller Camshaft Lift (in): .510 intake / .540 exhaust Camshaft Duration (@.050 in): 211° intake / 230° exhaust Cylinder Heads (P/N 12562920): Iron rectangular port; 118cc chambers Valve Size (in): 2.190 intake / 1.880 exhaust Compression Ratio: 8.75:1 Rocker Arms (P/N 19260993): Stamped steel Rocker Arm Ratio: 1.7:1 Water Pump (P/N 19168606): Cast-iron, long-style Flexplate (P/N 10185034): 14" Recommended Fuel: Premium pump Ignition Timing: 36° Total at 4,000 rpm Maximum Recommended rpm: 5,500 Balanced: External Intake Manifold (P/N 19131359): Dual Plane INSTALLATION NOTES

• Requires addition of carburetor, starter, fuel pump, distributor and ignition system (not included)
• Clutch linkage bosses are now drilled and tapped. When using cast-iron exhaust manifolds, lower head bolts may need to be replaced with bolts with shorter heads, for clearance
• Comes with an externally balanced 14" automatic transmission flexplate; use flywheel P/N 14096987 and 11" clutch assembly for manual transmission applications
• Designed for pre-1976 street vehicles or any off-road vehicle
• Not intended for marine applications

NOTE: Distributor with melonized steel gear MUST be used with long-blocks and Partial engines with steel camshafts, or engine damage will occur.
