Replaces 19434638

The Hot Cam Adds Heat to the LS3

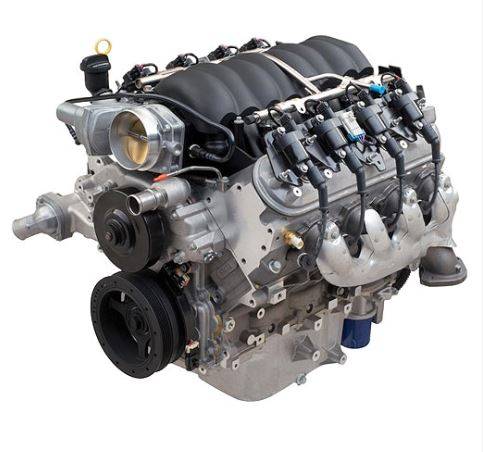

When our engineers took a production LS3 6.2L (376 cubic inches) engine and swapped the stock camshaft for the racing-inspired LS Hot Cam (P/N 88958753), the result was a stunning 495 horsepower and 473 lb.-ft. of torque. That’s nearly 14 percent more power and torque from just a camshaft change! We wasted no time in adding that terrific combination—dubbed LS376/480—to our crate engine portfolio. The key to the power boost is the Hot Cam’s 0.525-in lift on both the intake and exhaust sides, along with 219-degree/228-degree duration specs. That’s less lift on the intake side than the stock LS3 cam, but considerably more duration, allowing the valves to stay open a little longer to draw in more air from the rectangular-port L92-style heads. The crate engine package includes the intake manifold, throttle body and fuel rails, along with the ignition system. Use it with the LS376/480 controller kit P/N 19354330.

INSTALLATION NOTES

• Assembly does not include any electronics • Use LS376/480 Controller Kit P/N 19354330 for engine operation. Kit includes electronic throttle pedal, which is required for throttle input to the ECU • Includes Camaro F-body wet sump oil pan • Not intended for marine applications • Front-End Accessory Drive Kits are available in two configurations

TECH SPECS

Part Number: 19432416 Engine Type: LS-Series Gen IV Small-Block V-8 Displacement (cu in): 376 (6.2L) Bore x Stroke (in): 4.065 x 3.622 (103.25 x 92mm) Block (P/N 12623967): Cast aluminum with 6-bolt, cross-bolted main caps Crankshaft (P/N 19431872): Nodular iron Connecting Rods (P/N 12649190): Powdered metal Pistons (P/N 19207287): Hypereutectic aluminum Camshaft Type (P/N 88958753): Hydraulic roller Valve Lift (in): .525 intake / .525 exhaust Camshaft Duration (@.050 in): 219° intake / 228° exhaust Cylinder Heads (P/N 12675871): Aluminum L92-style port; as-cast with 68cc chambers Valve Size (in): 2.165 intake/ 1.590 exhaust Compression Ratio: 10.7:1 Rocker Arms (P/N 12696105 int): Investment-cast, roller trunnion Rocker Arms (P/N 12681275 exh): Investment-cast, roller trunnion Rocker Arm Ratio: 1.7:1 Recommended Fuel: Premium pump Maximum Recommended rpm: 6,600 Reluctor Wheel: 58x Balanced: Internal
