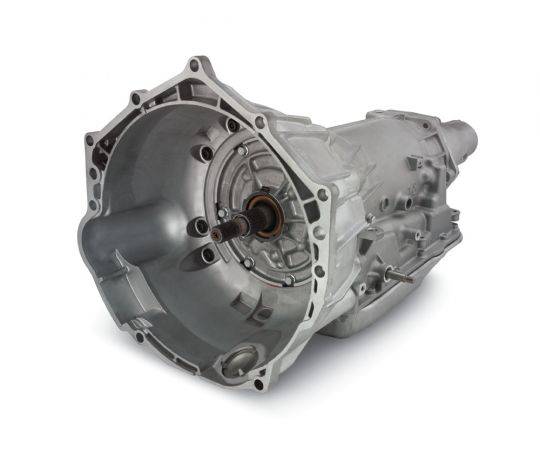

SuperMatic 4L70-E Four-Speed Automatic Transmission

Replaces 19299055

SuperMatic™ 4L70-E Four-Speed Automatic Transmission
• Based on the 4L60-E/4L65-E
• Increased horsepower and torque capacity
• Features five-pinion gearsets, heat-treated stator shaft splines, induction-hardened turbine shaft, seven-plate clutch and specific valve-body calibration
• Gear ratios: 1st: 3.06, 2nd: 1.62, 3rd: 1.00, 4th: 0.70
• Torque converter not included
• Add up to 495 lb.-ft. torque

NOTE: Use with electronic controller P/N 19332775 for carbureted and Ram Jet applications. Use with electronic controller P/N 19302405 with Chevrolet Performance LS fuel injected applications.
